HomeLab 2022: VCF, NSX, SD-WAN, AWS

HomeLab 2022: VCF, NSX, SD-WAN, AWS

Architecture and Hardware Refresh

I get asked about my homelab quite a bit, so this post details the recent architecture and hardware changes to my homelab. As with most labs, this one is an ever-changing beast… not to mention great way to spend that hard earned cash! In this revision you will see a major shift in the way VCF, NSX, SD-WAN, AWS is used.

Lab Architecture

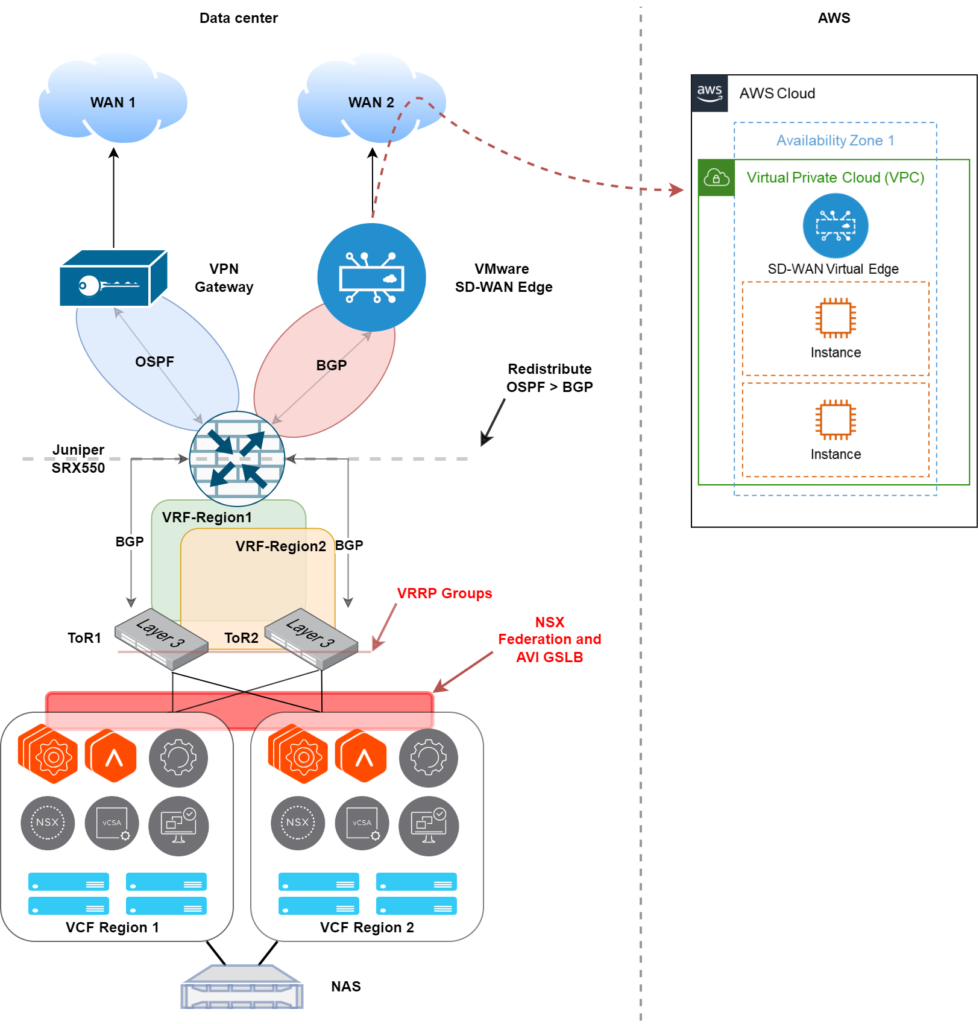

The diagram below is a representation of the labs current architecture, the last lab revision included a lot of nested routers. Recently, I scrapped all the virtualized routers and replaced them with physical top of rac

AWS NSX network veeam

Summary of the lab (top down).

  • Two WAN connections, one is a dedicated backup link and also used for remote access. The other is the primary link, connectivity is provided with VMware SD-WAN.
  • The core router / firewall is a Juniper SRX550. This peers with both the VPN gateway and the SD-WAN edge, using OSPF and BGP, respectively.
  • The SRX550 has two VRF’s, one for each VCF region and links and routing protocols are configured accordingly.
  • The top of rack switches are Brocade ICX6610 48P’s, also configured with the VRFs, interfaces, BGP, and VRRP for gateway redundancy.
  • Two physical VCF Regions (Bill of Materials is below). With the VRF’s, I have simluated two datacenters and have configured connectivity with NSX Federation, and NSX-ALB Global Server Loadbalancing (GSLB)
  • There is shared storage between the two VCF Regions, this is provided with a NAS.
  • The connection from the Data Center to AWS is provided with VMware SD-WAN, this is configured in a branch-hub topology.
  • The NAS is used as the primary backup target, critical data is also replicated to AWS S3 using Veeam (backup architecture detailed later).

Bill of Materials

VCF Region 1

  • Fujitsu Primergy RX2540 M1 E5-2640v3 x2 / 256GB RAM / 3TB Flash Storage X2
  • Dell R730 E5-2360v3 x2 / 256GB RAM / 3TB Flash Storage
  • Dell R720 E5-2620 v2 / 256GB RAM / 3TB Flash Storage

VCF Region 2

  • Dell R730XD E5-2640 v3 / 256GB RAM / 3TB Flash Storage
  • Dell R630 E5-2630 v3 / 256GB RAM / 3TB Flash Storage X2
  • Dell R630 E5-2697 v3 / 256GB RAM / 3TB Flash Storage

Networking

  • Sophos XG 430 – VPN Gateway
  • VMware SD-WAN Edge 510
  • Juniper SRX550 – Firewall / Core Router
  • Brocade ICX 6610 48P – top of rack switching
  • Host uplinks to switching is all 10GB

Shared Storage

This is a BareMetal install of TrueNAS.

  • 6 x 6TB WD reds
  • SSD Caching drive
  • 10GB networking

Virtual Environment

Each region has the following deployed.

  • SDDC Manager
  • vCenter
  • VMware NSX (Local Managers)
  • VMware NSX (Global Managers
  • NSX Advanced Load Balancer (NSX ALB) Controllers
  • NSX ALB Service Engines
  • vRealize – Log Inisght, Network Insight, Operations Manager
  • vRealize Automation (Region 1 only)
  • vRealize Lifecycle Manager (Region 1 only)
  • Infoblox (Region 1 only)
  • Microsoft AD (Region 1 only)
  • Veeam (Region 1 only)

If I ever need to test something that is not going to be permanent, I use nested environments in either region. This ensure I do not disrupt the underlaying infrastructure.

Backup Strategy

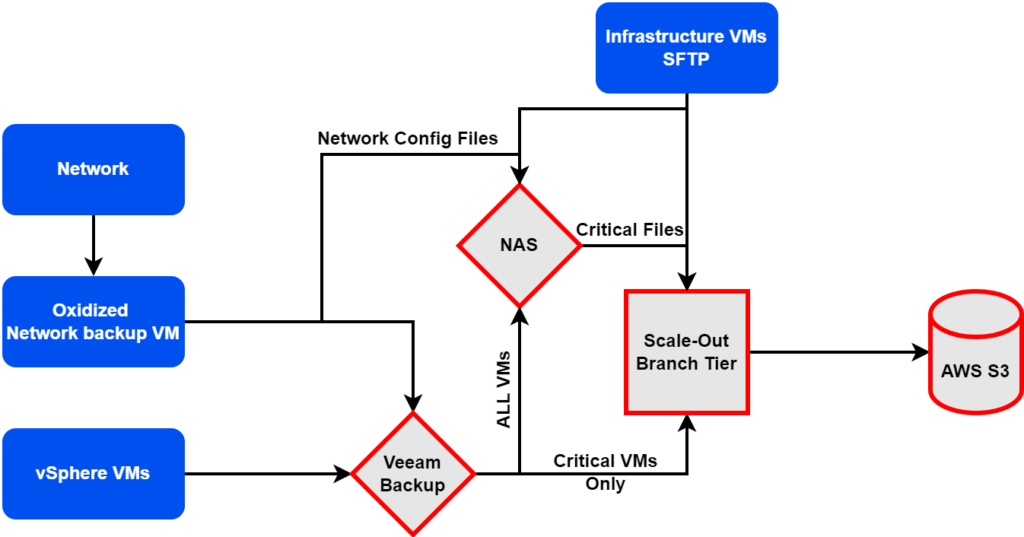

The diagram below depicts the backup workflow configured in the lab.

AWS NSX network veeam
  • Network devices (switches, routers, etc) have their configuration pulled by Oxidized. A cron job on Oxidized runs at a scheduled interval that copies the files to a file share on the NAS.
  • The Oxidized VM is backed up by Veeam, this backup is stored on the NAS
  • vSphere VMs are backed up by Veeam and are stored on the NAS. Critical VMs (AD etc) are also marked for secondary storage, these are replicated to AWS S3.
  • Other critical files, such as those on the file share, are also marked for secondary storage, and replicated to AWS S3.
  • Infrastructure VMs (vCenter, NSX, SDDC Manager, etc) are backed up using SFTP to the scale-out branch tier, as well as the file share on the NAS.

All the content I publish is created utilizing this lab.
